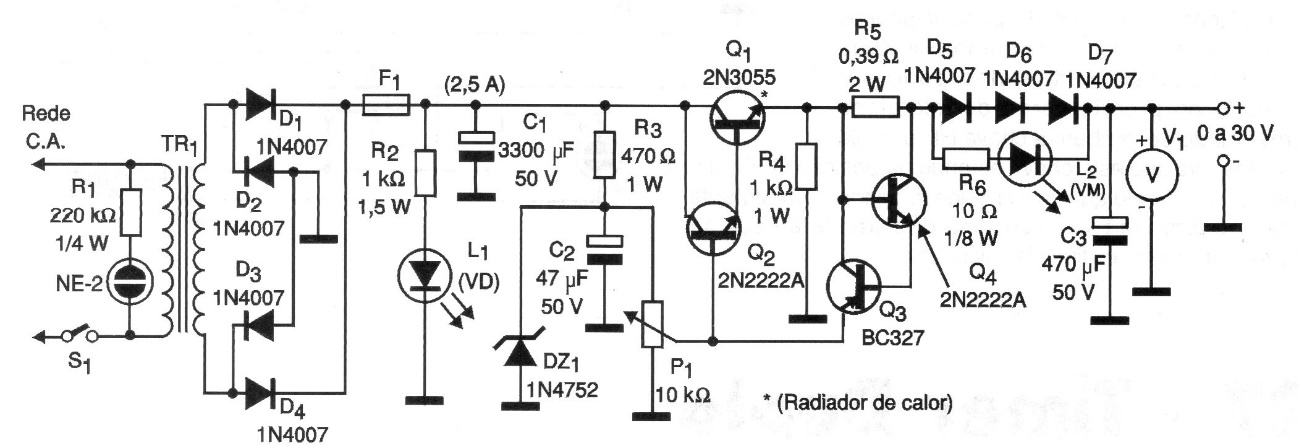

This benchtop transistor source has short circuit protection and uses only common transistors. The 2N3055 must have a heat sink. The maximum current for the protection circuit depends on R5. The output voltmeter is optional, and a standard multimeter can be used instead.
