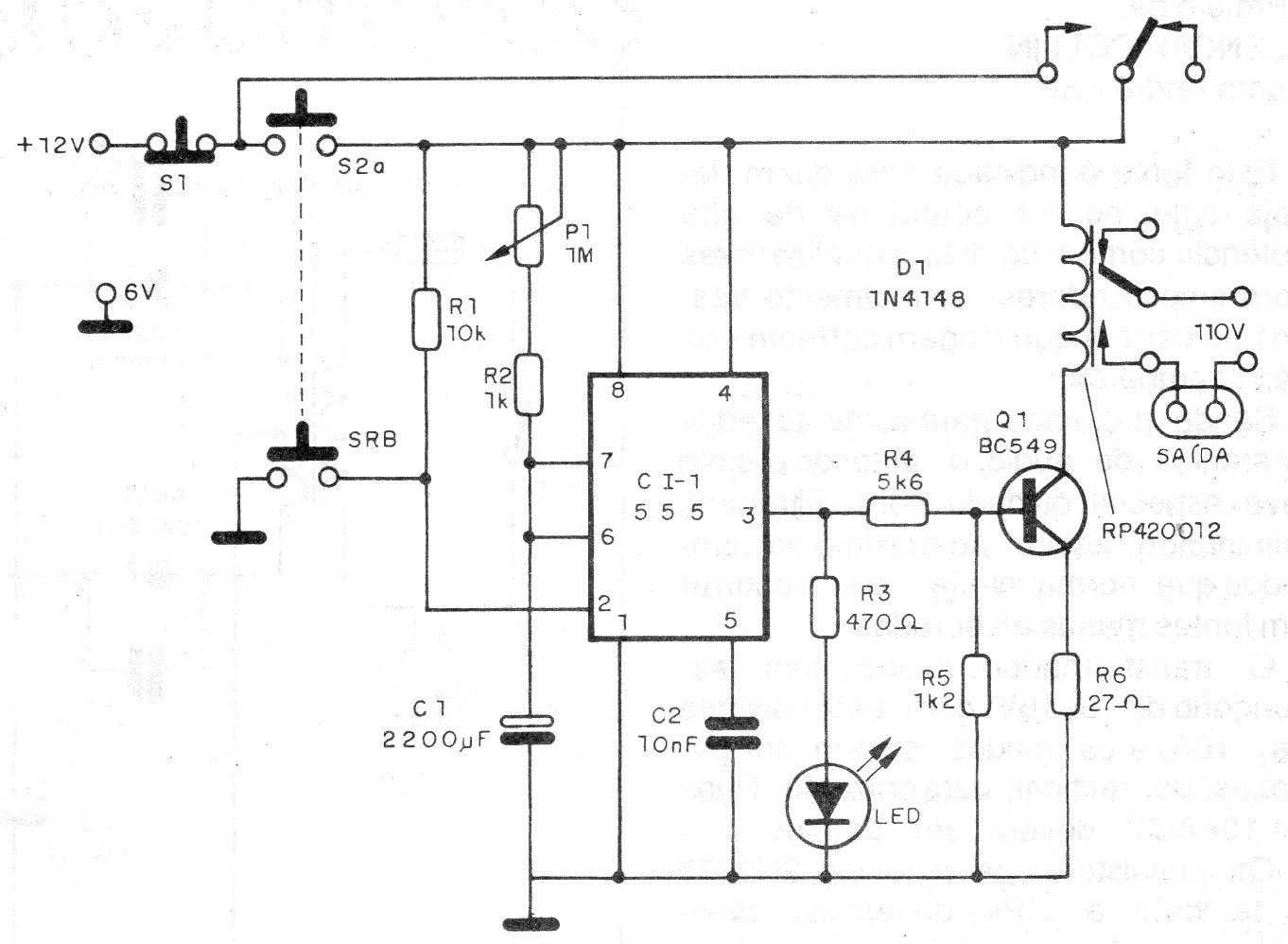

This is one of the possible settings for a timer of up to more than half an hour using the 555. The value of C1 determines the time range, being indicated for just over half an hour. The relay can be 6 V or 12 V depending on the desired voltage for the supply.
