This circuit is from a 2000 documentation for the control of 12 V motors with 500 mA. The circuit can serve as a shield for microcontrollers since its input is compatible with TTL logic.
| Clique na imagem para ampliar |

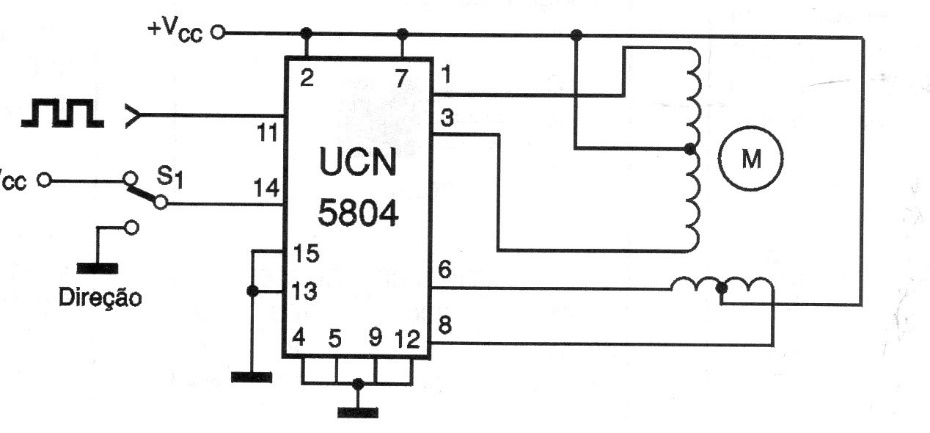

Stepper Motor Sheld UCN5804 (CB17541E)
- Details
- Written by: Newton C. Braga
