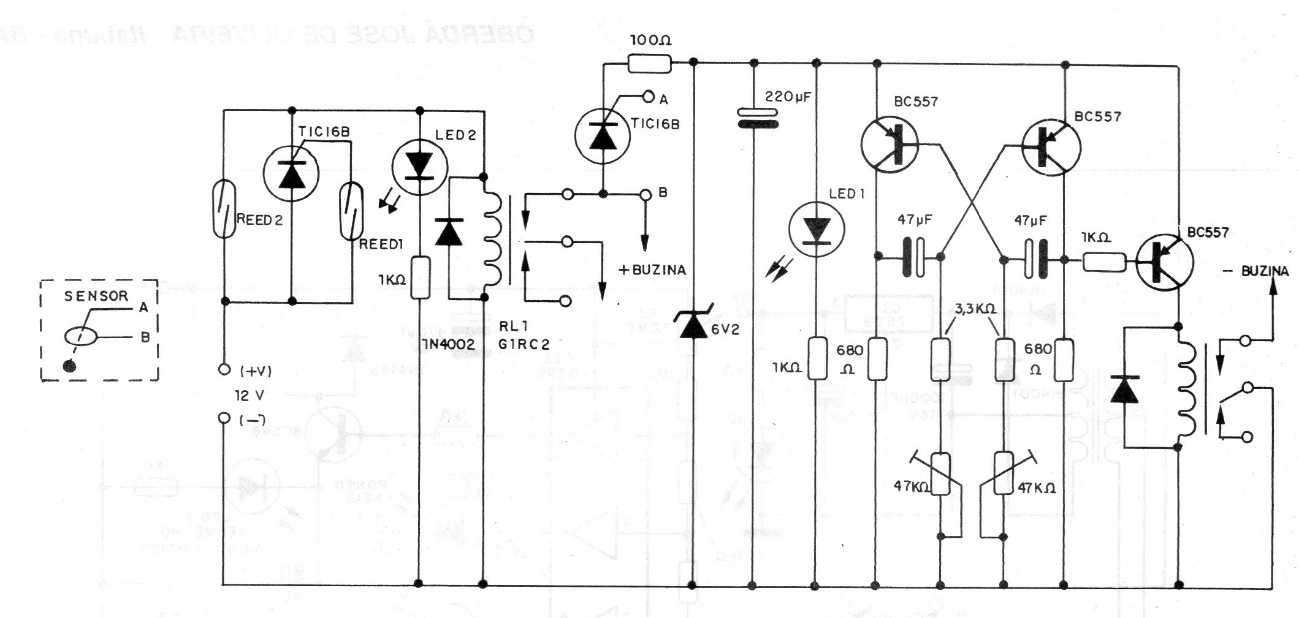

This circuit is from a 1992 documentation, but the components used can still be easily assembled. The relays are of the sensitive type of 12 V and the sensor is of the type of pendulum or balance activated when the motorcycle is moved. Adjustments of the trigger mode (frequency or flash) are made in the trimpots.
