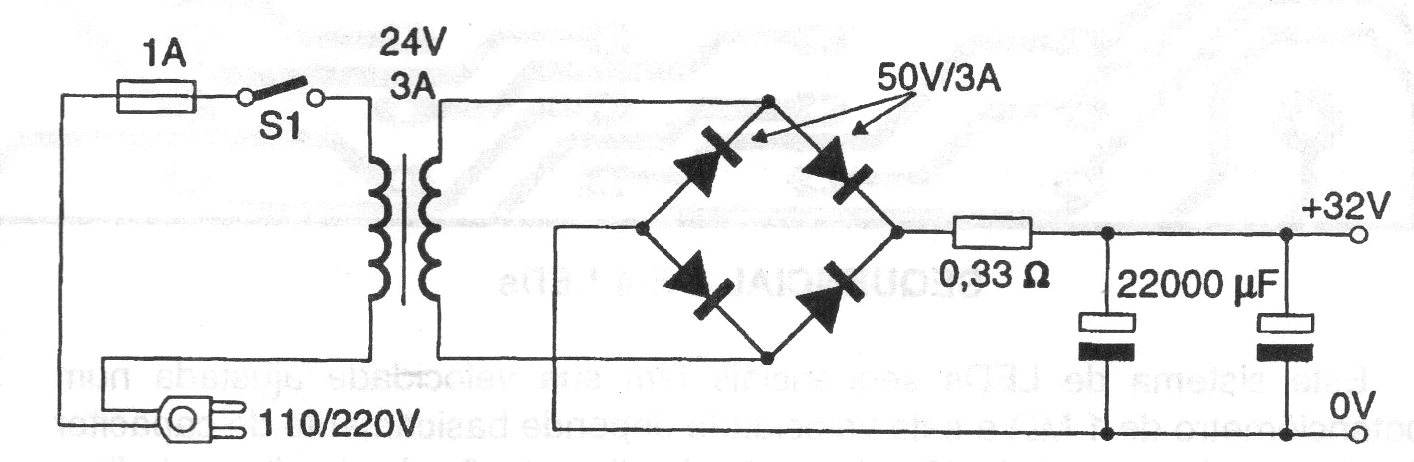

This unregulated power supply can be used in a variety of applications, such as powering amplifiers. The diodes are for 1 A or more and a peak reverse voltage of at least 100 V. Electrolytic capacitors must have working voltages of at least 50 V.
