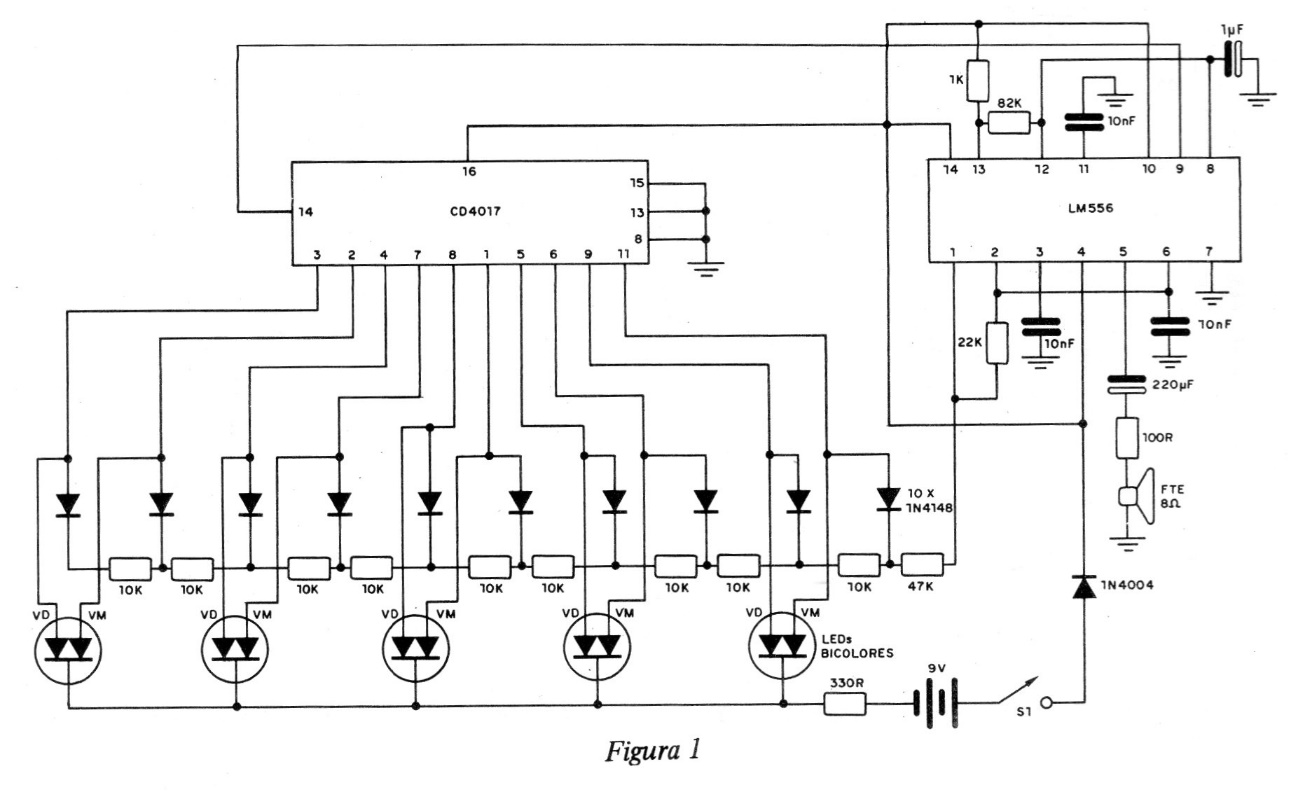

In addition to producing a pulse sequence on the LEDs, this 1986 circuit also produces a tone sequence. The LM556 circuit consists of a double 555. The supply can be made with voltages from 6 to 9 V.
| Clique na imagem para ampliar |
Audio Visual Sequencer (CB17521E)
- Details
- Written by: Newton C. Braga
