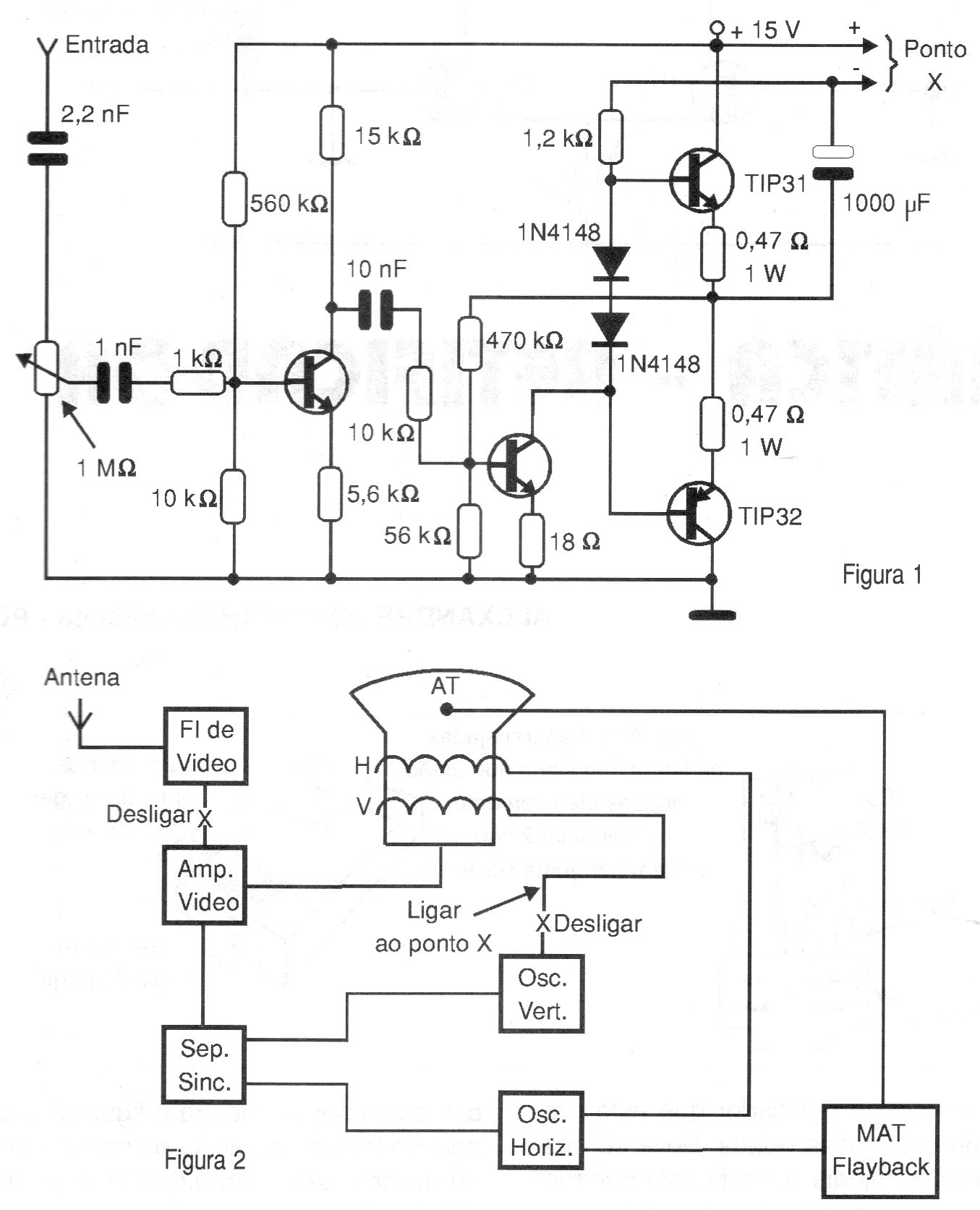

An old analog TV that is not in use can be turned into an oscilloscope for low frequencies (audio). In the figure we have the way to make the modification and the input circuit for signals up to a maximum of 30 kHz, as the kinescopes do not respond to higher frequencies.
| Clique na imagem para ampliar |
