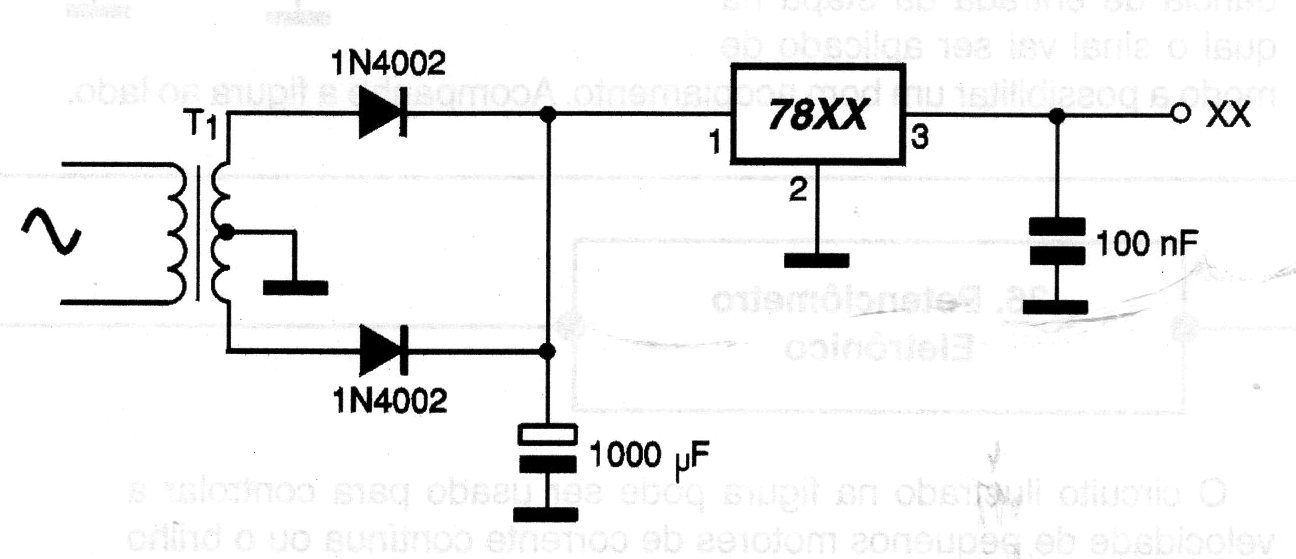

In this circuit, xx can be 05, 06, 12 or 15 for output voltages of these values. The integrated circuit must have a heat sink and the transformer has a secondary of 6, 7.5, 12 or 15 V for voltages of 5/6, 12 and 15 V. The maximum current is 5 A.
