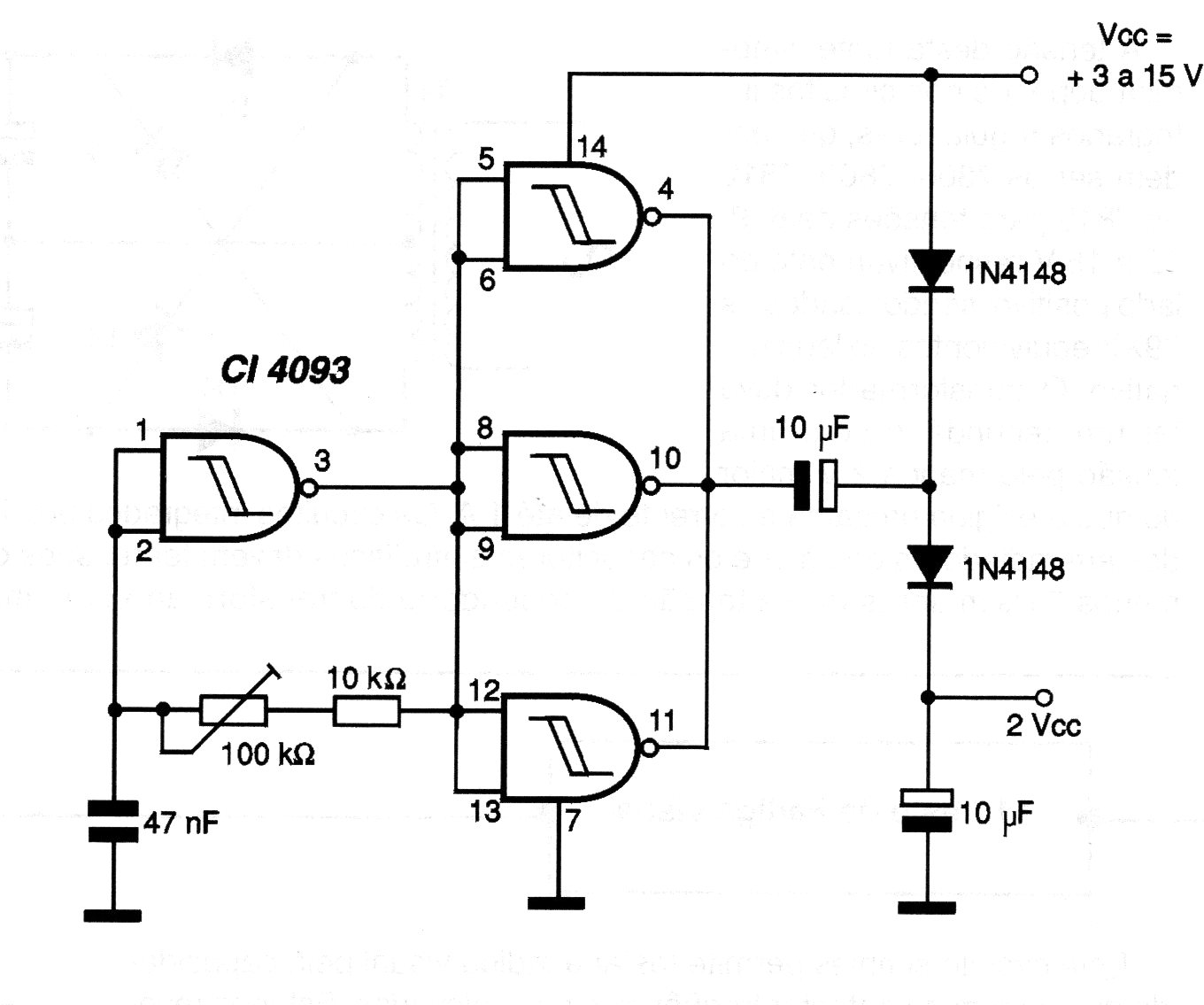

This circuit, from a 2001 documentation, appears elsewhere on this site. Its purpose is to obtain a continuous voltage that is twice the input voltage. The current is too low which limits the applications of the circuit to polarization.
