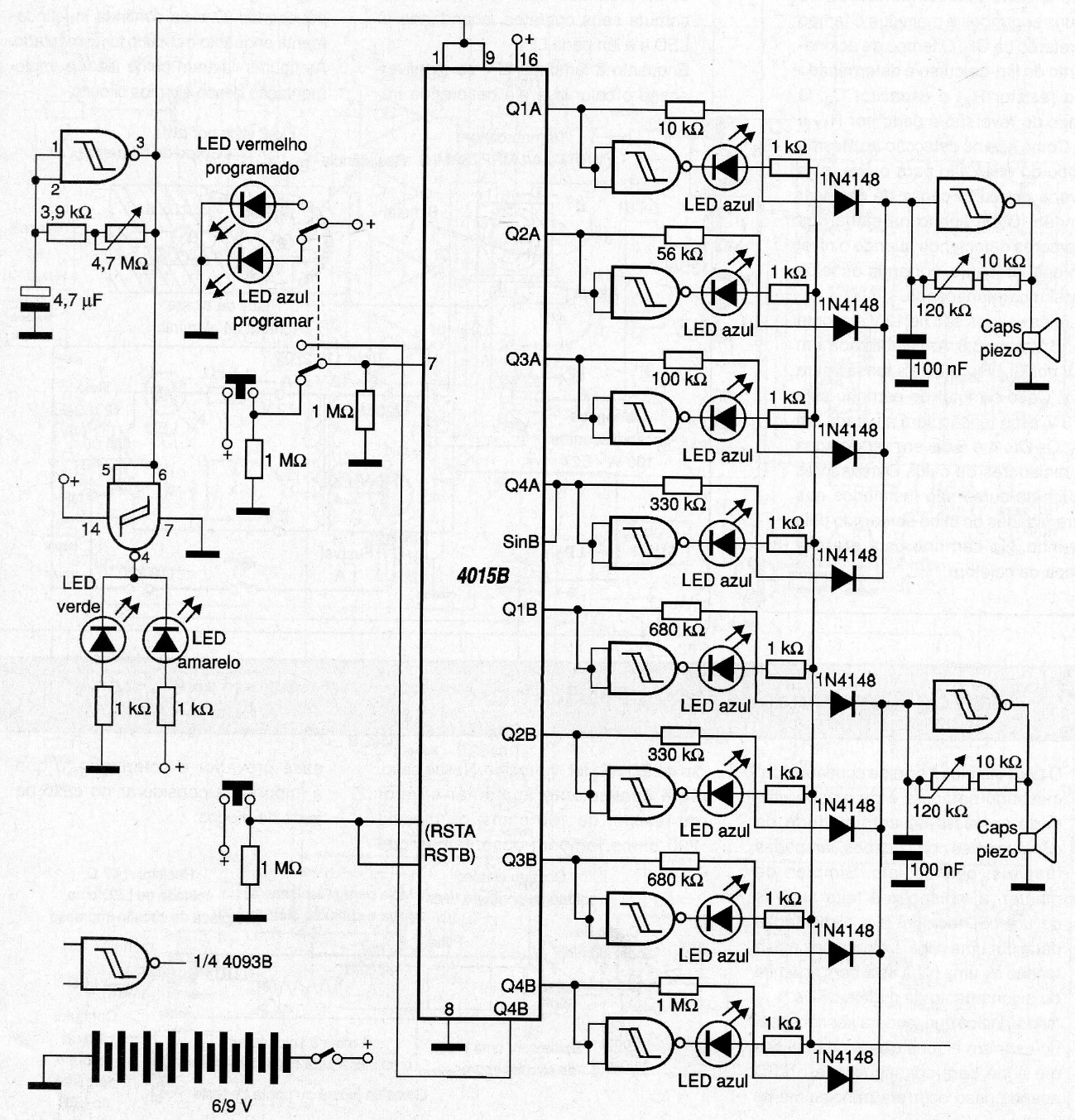

The tones of this circuit are determined by the feedback resistors on the oscillators with the 4093. The circuit has a small speaker for playback, but an external step can be used for greater audio power.
| Clique na imagem para ampliar |
Programmable Sound Effects Generator (CB18055E)
- Details
- Written by: Newton C. Braga
