Simple Traffic Light (CB17024E)

Details
Written by: Newton C. Braga

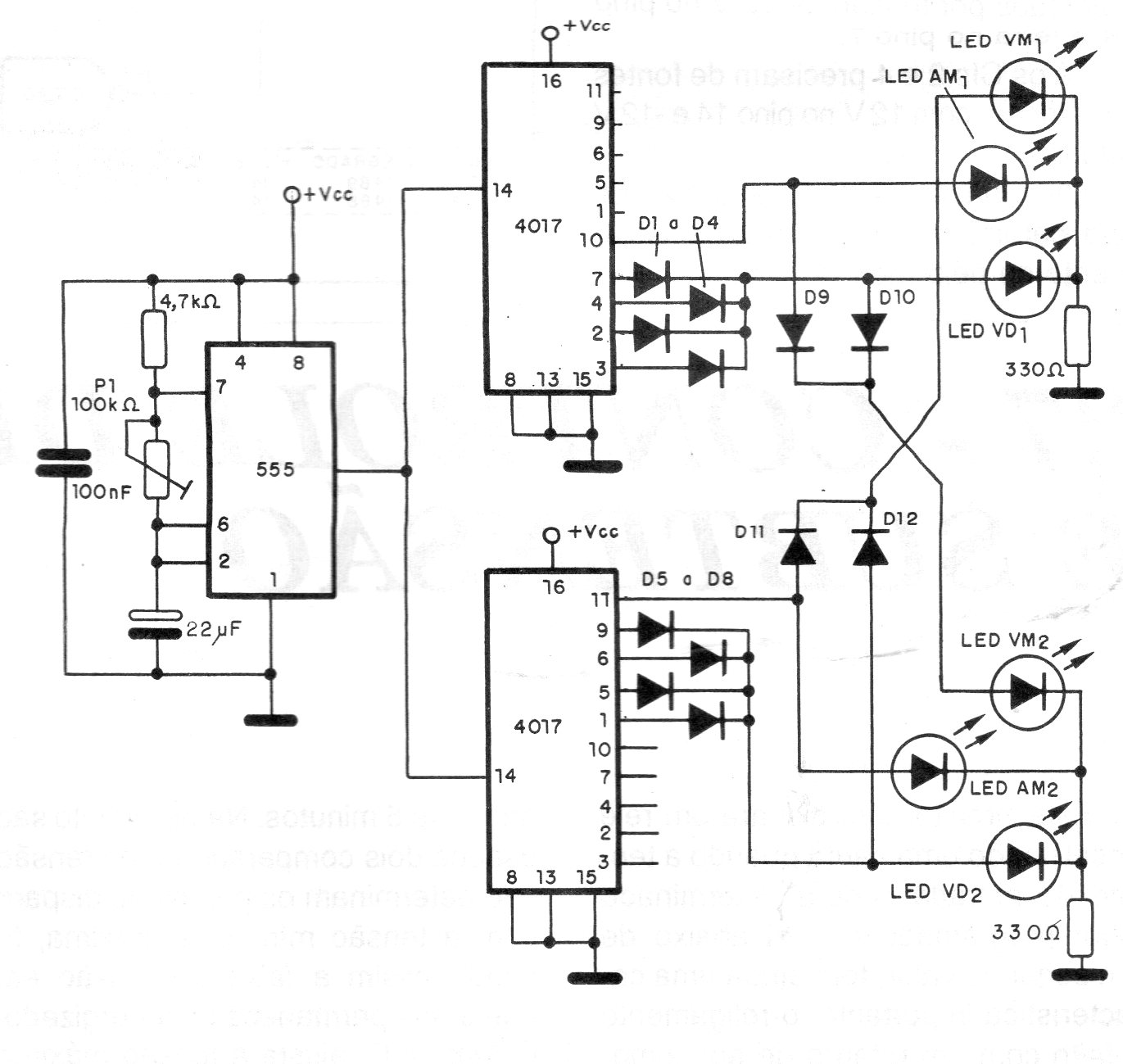

This circuit controls 6 LEDs in two sets with the phase change cycles controlled by a 555 oscillator. The circuit can be powered by voltages between 6 and 12 V.




| Clique na imagem para ampliar |
