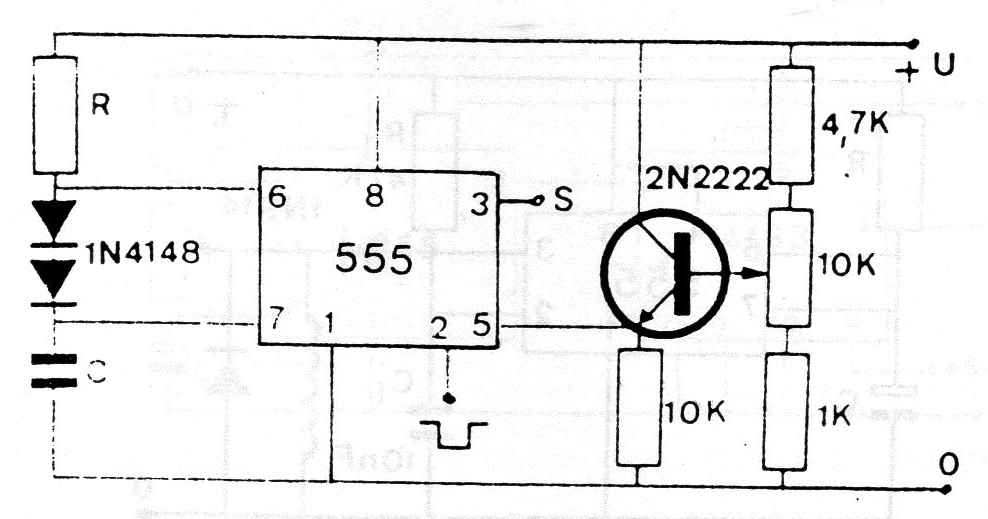

Here we show a configuration in which we have a control voltage applied from a voltage divider, which determines the trigger point of the 555. Thus, values other than 2/3 Vdc can be programmed for the trip. The time is given by RC. The power can be between 5 and 15 V.
