Or Exclusive with Diodes and Transistors (CB19894E)

Details
Written by: Newton C. Braga

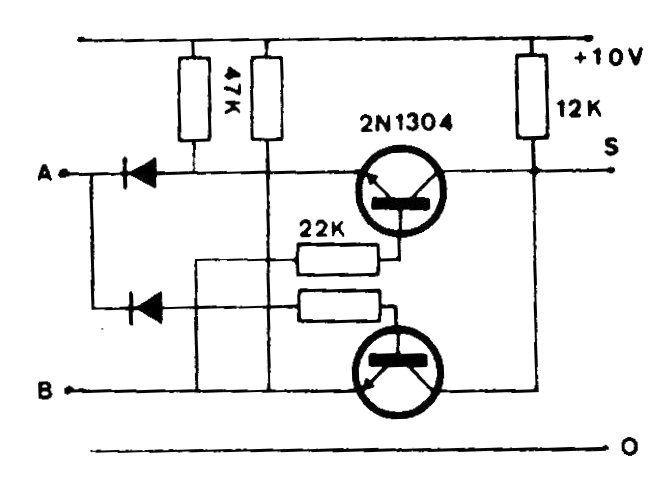

The diodes are for general use and the transistors also in this Exclusive-OR circuit. The circuit may have the values of the resistors changed to 5 V logic.






| Clique na imagem para ampliar |
