This circuit was found in the comparator's own documentation, serving others in the same series. The signal shapes are found next to the diagram and the component values can be changed to other times.
| Clique na imagem para ampliar |

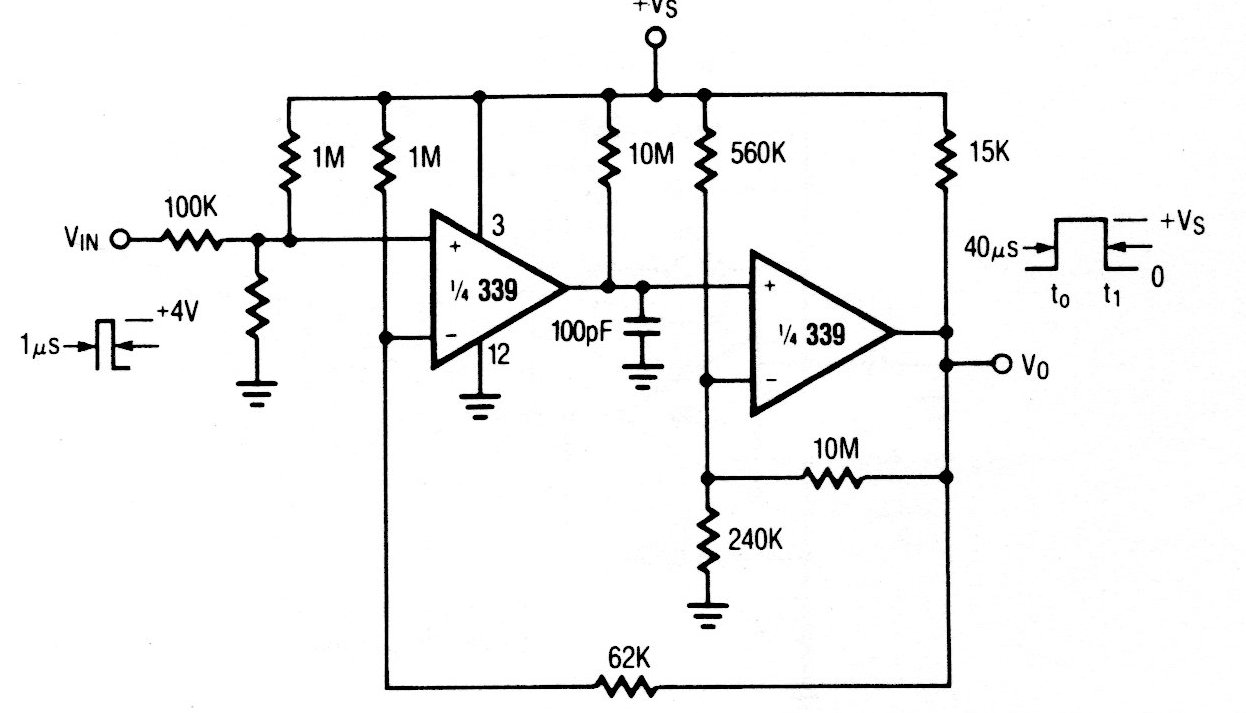

Monostable with Input Lock LM339 (CB19794E)
- Details
- Written by: Newton C. Braga
