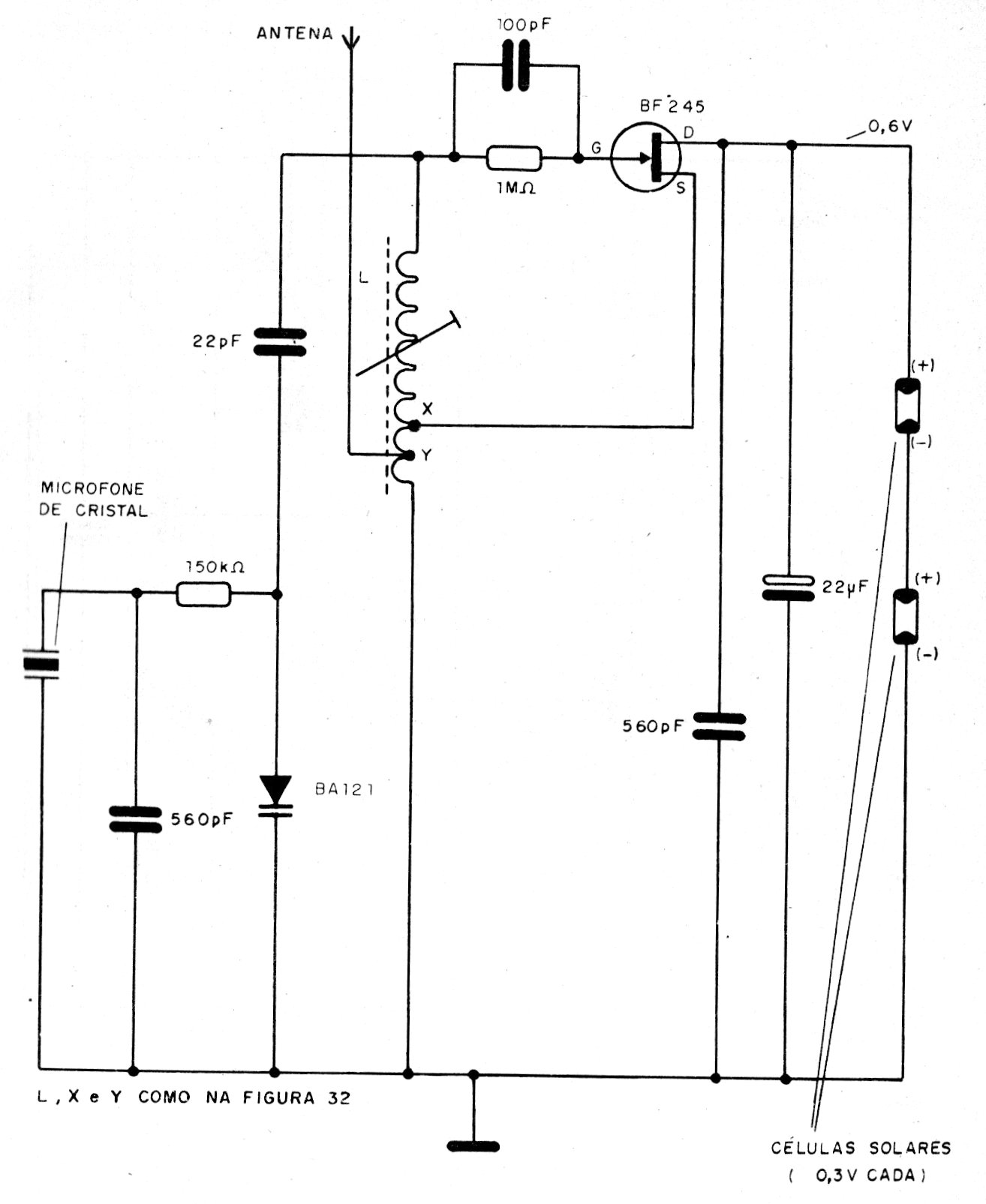

This' 90s circuit emits a signal in the FM band with a few tens of meters in range. The coil is the same as the previous circuit (CB19440E) and the supply can be done with two to four solar cells in series.
| Clique na imagem para ampliar |
JFET Solar Transmitter (CB19441E)
- Details
- Written by: Newton C. Braga
