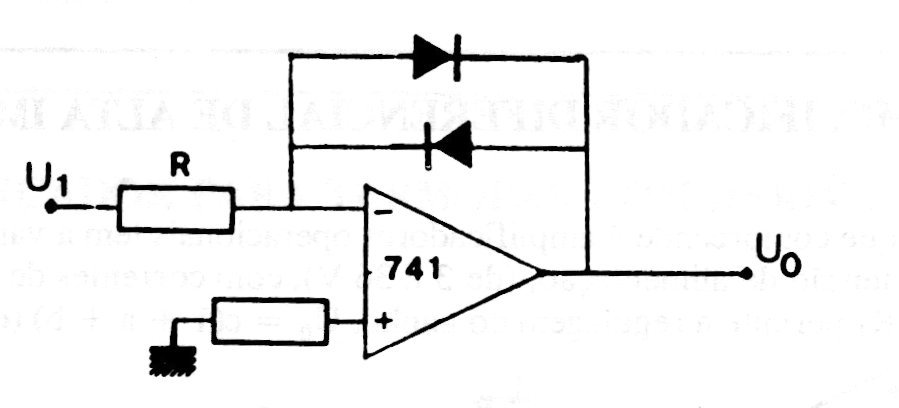

This configuration, already presented in other points of this section and website, is of a logarithmic amplifier, whose response is determined by the action of the diodes. The circuit requires a symmetrical source and can be implemented with other operational amplifiers.
