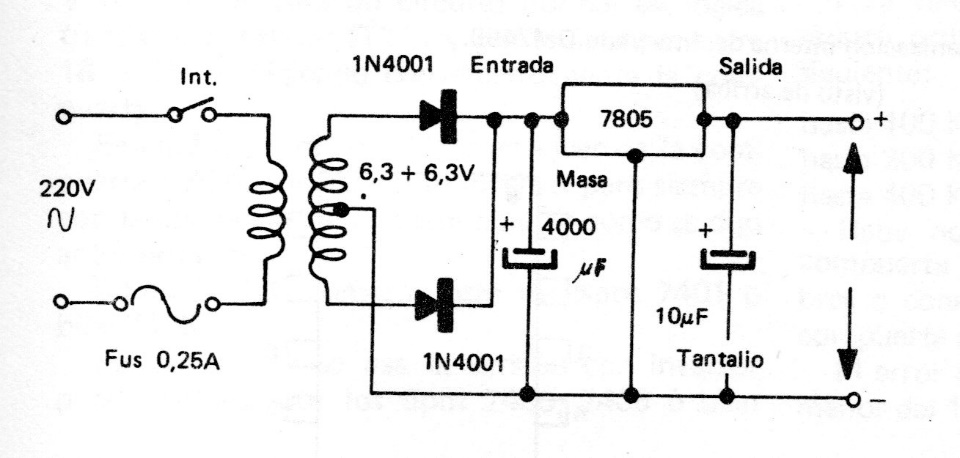

This power source is indicated for the supply of the previous circuit (CB19638E), but it is also used for other TTL assemblies or that use 5 V microcontrollers. The circuit is from an old documentation and the voltage regulator must be equipped with a heat sink.
| Clique na imagem para ampliar |
