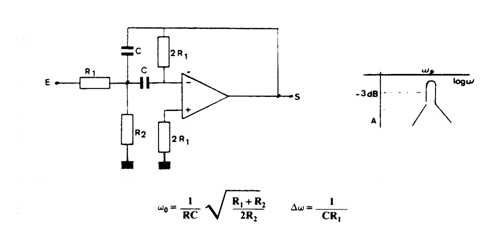

This circuit was found in a documentation of the 80's having characteristics of high overvoltage given by the graph next to the diagram. The filter can be implemented with any operational. The power supply must be symmetrical.
High Overvoltage Band Pass Filter (CB19685E)
- Details
- Written by: Newton C. Braga
