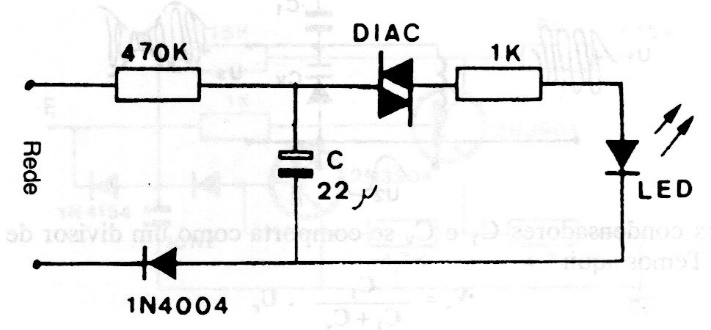

This ultra-low power circuit uses a diac to flash an LED when connected to the power grid. The intensity of the blinks and the frequency are given by the capacitor value that can be changed over a wide range of values.
| Clique na imagem para ampliar |
