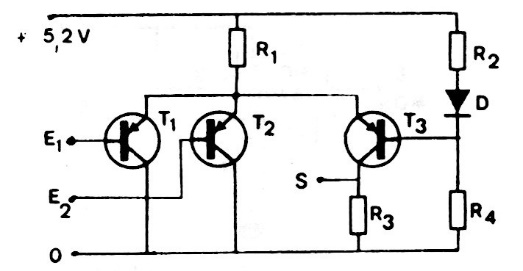

This transistorized shield also functions as a logic gate. The power supply can be in the range of 4.5 to 5.2 V and the output depends on the load R1 can be 1k, and the others depend on the desired characteristics. Transistors are general purpose.
Two Input Shield (CB19753E)
- Details
- Written by: Newton C. Braga
