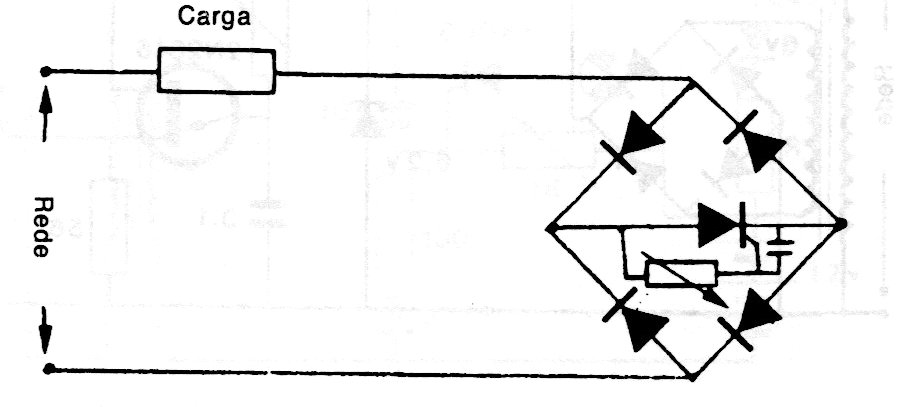

In the diagram, from a documentation from the 90s, we have the way to use an SCR in a full wave control. The diodes must be capable of handling the load current and the potentiometer, represents the external control circuit.
| Clique na imagem para ampliar |
