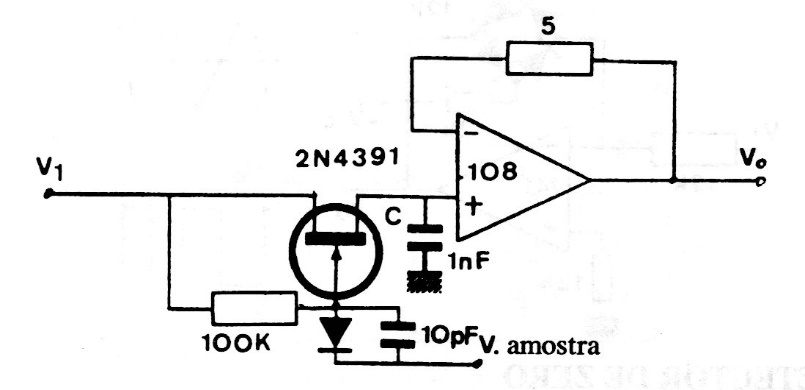

This sample and hold circuit was found in ancient European documentation. The operational can be anyone with FET at the entrance like the CA3140 and the FET admits equivalent. The power supply must be symmetrical. Capacitor C must be of high quality with minimal leakage.
