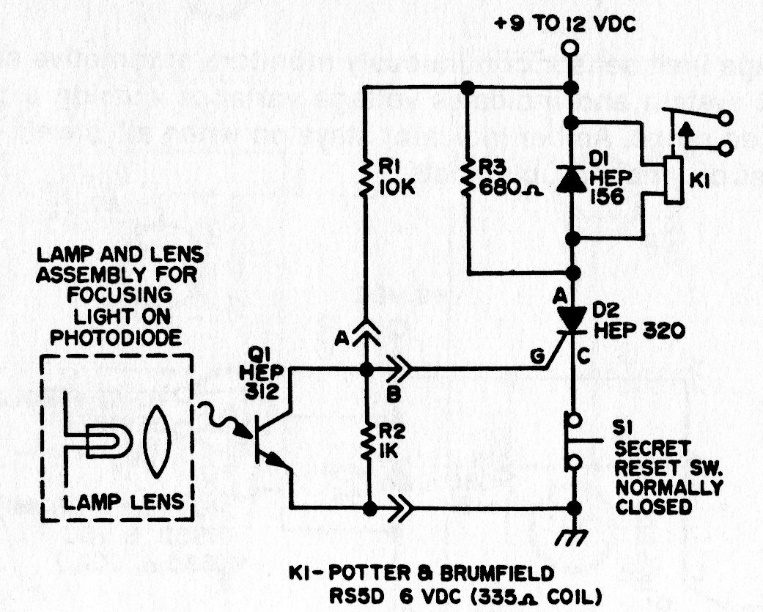

The sensor of this circuit can be any phototransistor and the SCR can be the TIC106. The circuit and an old documentation and the supply must be supplied with 9 or 12 V depending on the relay being 6 or 12 V, remembering the compensation of the voltage drop in the SCR.
| Clique na imagem para ampliar |
