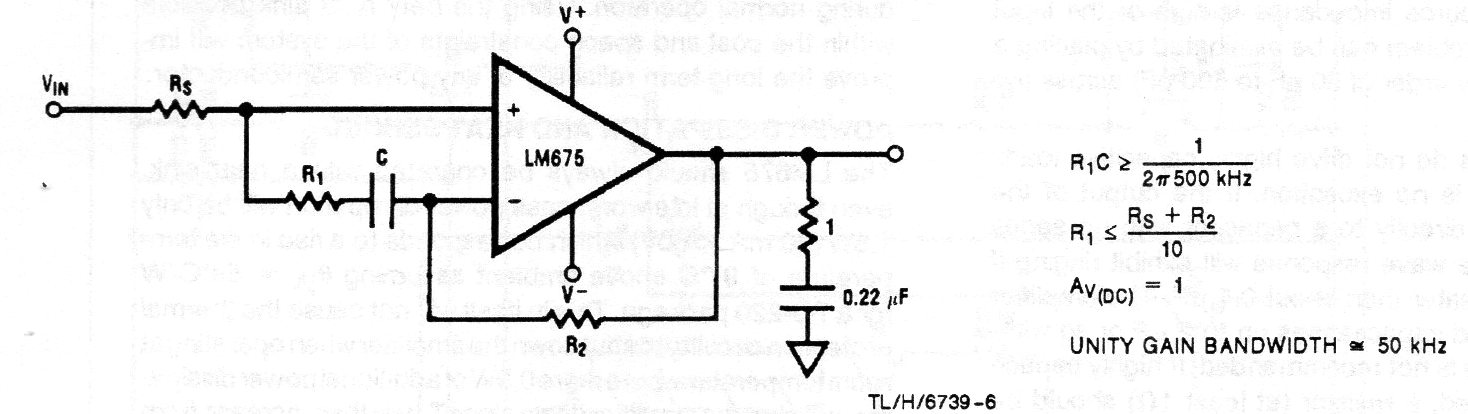

The National Semiconductor LM675 operational amplifier can provide up to 3 A of output current. In the figure we have the basic non-inverting configuration. The circuit uses a symmetrical source from 15 to 60 V and must have a heat sink.
