Very Low Input Current Amplifier (CB19485E)

Details
Written by: Newton C. Braga

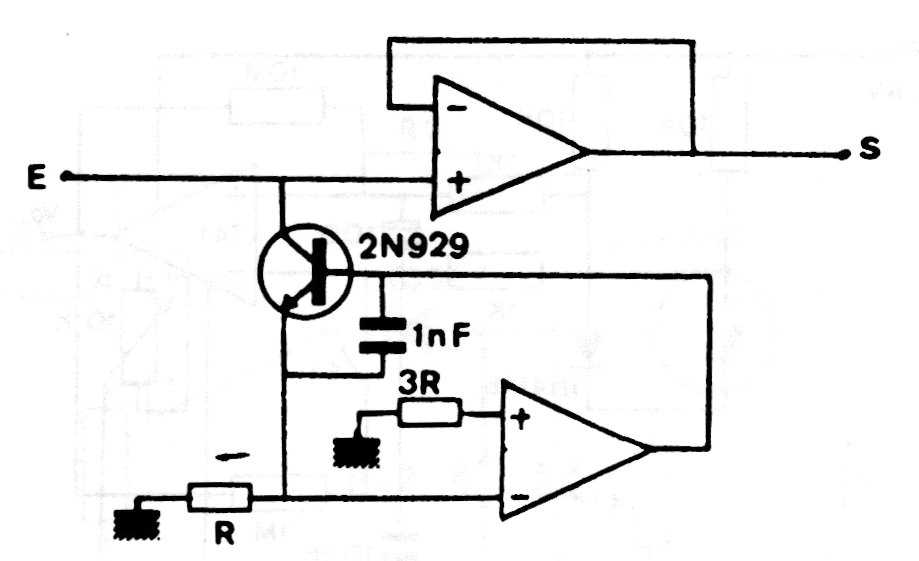

This configuration with two operators was found in a circuit manual from the 1980s. However, it can be implemented with more modern operators. The source must be symmetrical, and the transistor admits an equivalent.
