Ammeter (CB19752E)

Details
Written by: Newton C. Braga

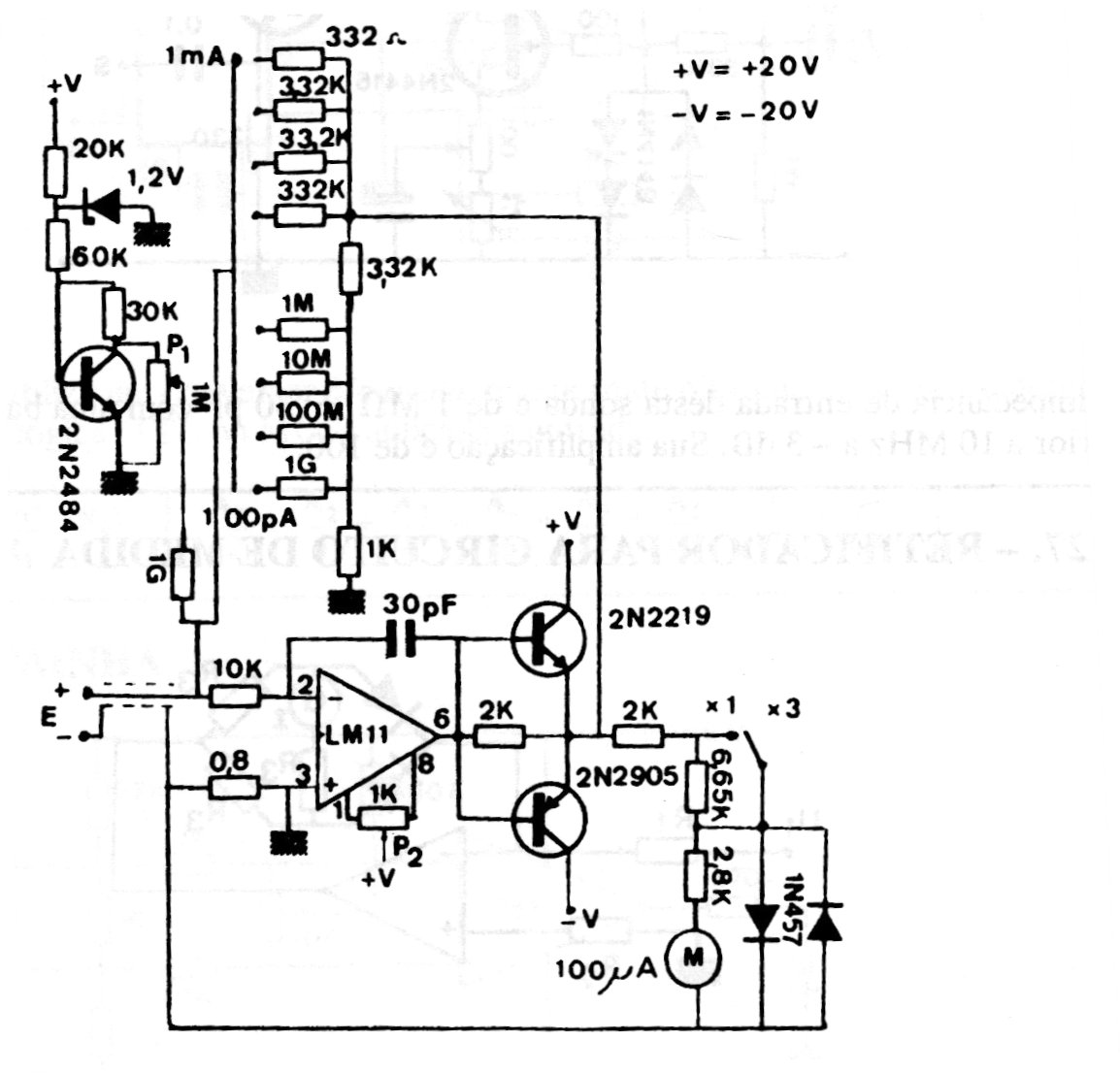

This analog ammeter circuit was found in documentation from the 1980s. The components admit equivalents and the scales are determined by the values of the components in the range selection.




| Clique na imagem para ampliar |
