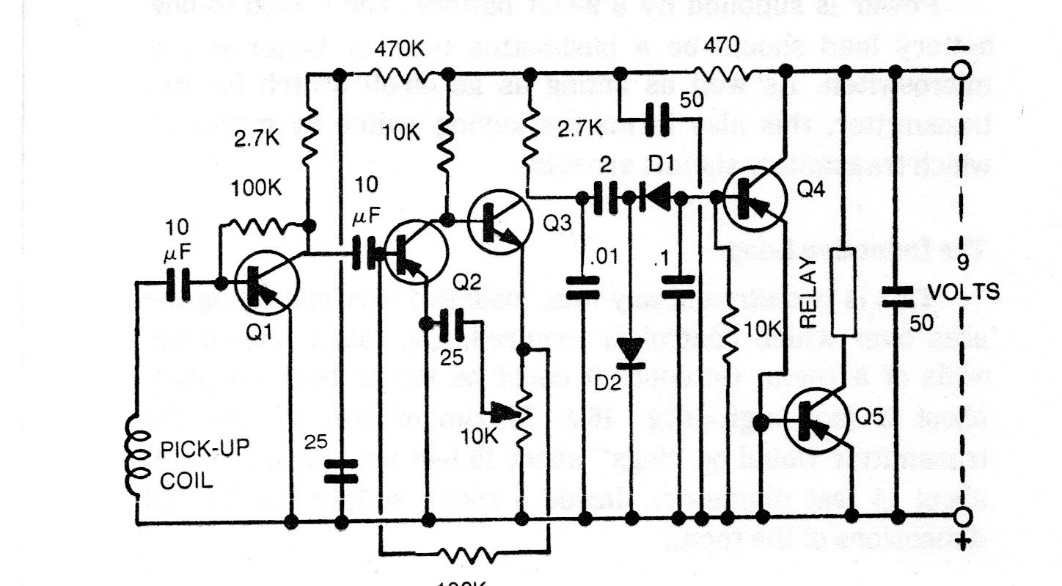

This is the receiver for the transmitter suggested in CIR13081. The configuration is old, and transistors of the time are used. The relay is a 9 V sensitive type. Changes can be made to the circuit to operate with modern transistors and a 6 or 12 V supply, depending on the most common relays today.
