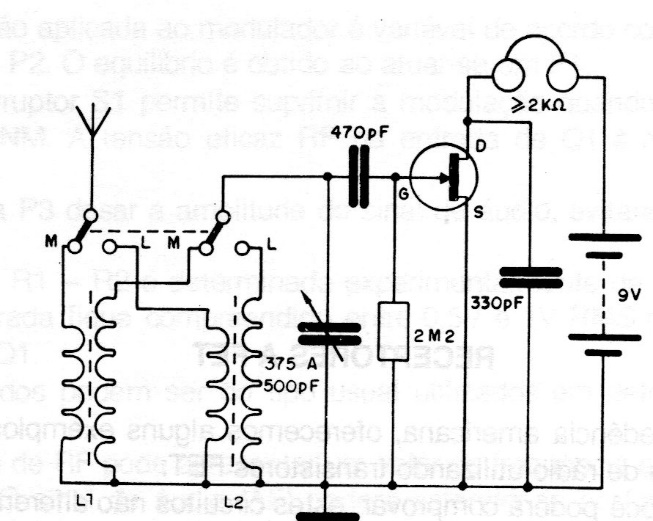

The signal detection in this two-band receiver is made by the gate or gate of the field effect transistor. See the previous circuit for more details (CB19262E). The power can be powered by batteries or source and the handset must be of high impedance. The antenna must be long in the case of weak stations.
