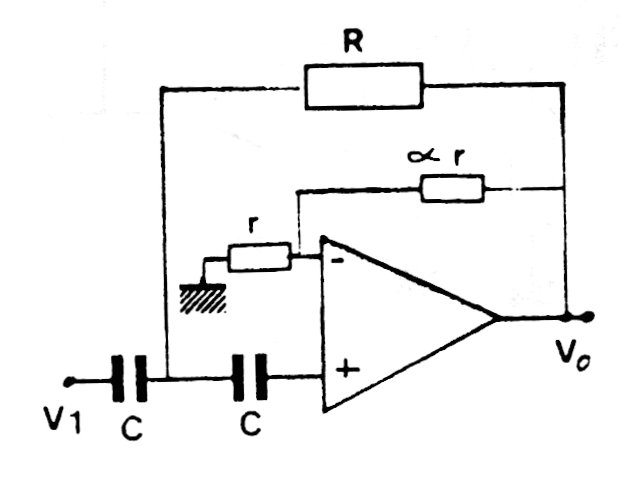

The components of this filter are calculated using the formula f = 1 / RC and it can be implemented with almost any operational amplifier like the 741 and its equivalents. The power supply must be symmetrical.
High Pass Filter V (CB19682E)
- Details
- Written by: Newton C. Braga
