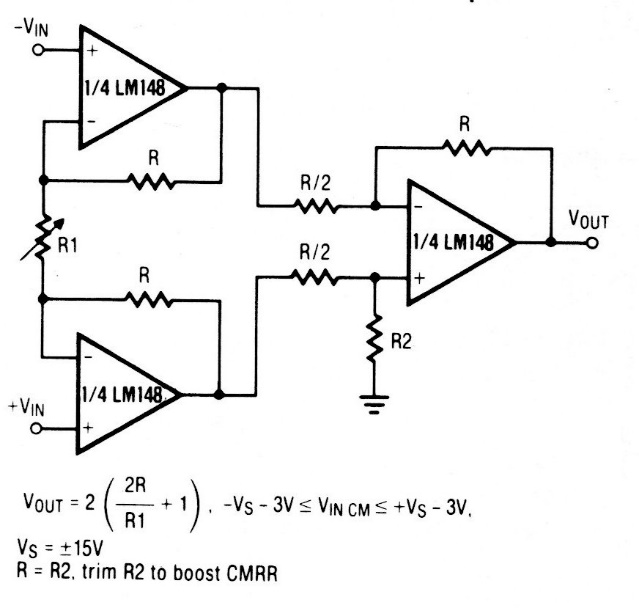

This circuit is from the component's own datasheet, which is a quadruple equivalent of the 741. The circuit has a gain determined by the formula next to the diagram and must use symmetrical power supply.
Instrumentation Amplifier LM148 (CB19702E)
- Details
- Written by: Newton C. Braga
