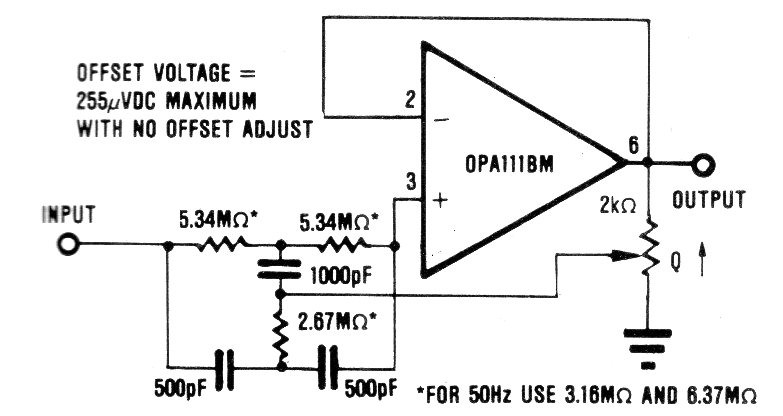

This circuit blocks 60 Hz signals and can be used in filters for audio equipment. The operational amplifier is uncommon today, but equivalents can be used. The circuit is from an old documentation from the 80's and requires a symmetrical power supply.
