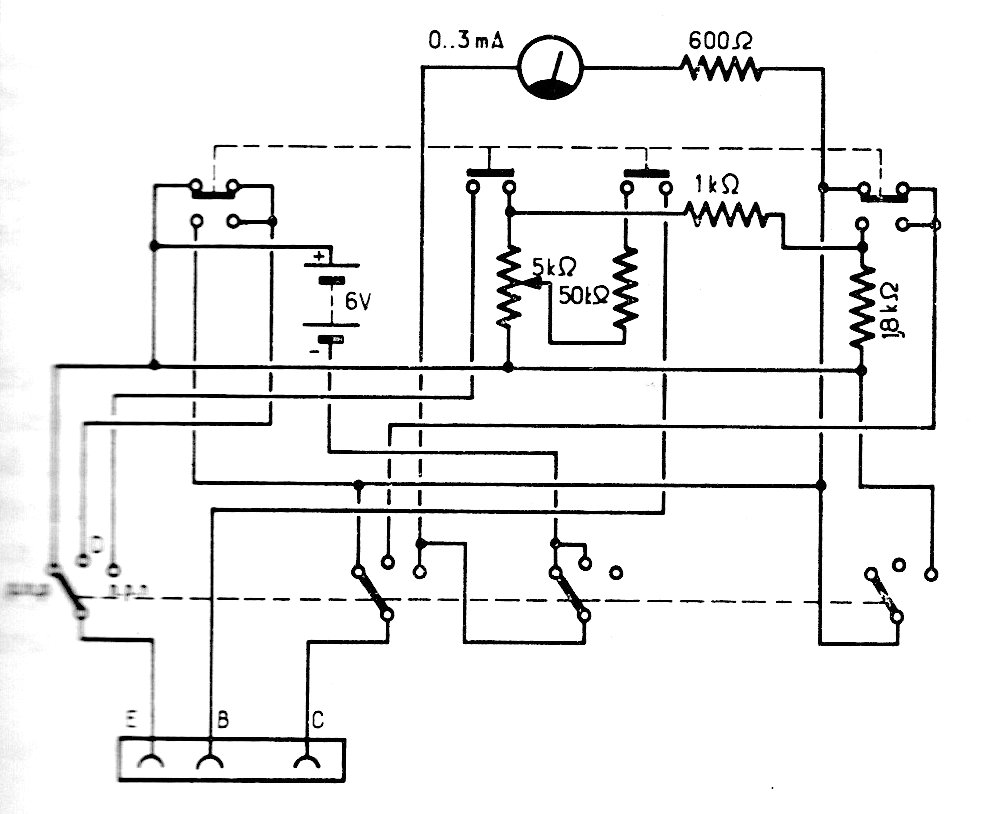

Transistor Tester II (CB19459E)

Details
Written by: Newton C. Braga



This circuit was obtained in a French documentation from 1981 and can be easily assembled. The analog instrument itself can be replaced by the current scale of an ordinary multimeter.
