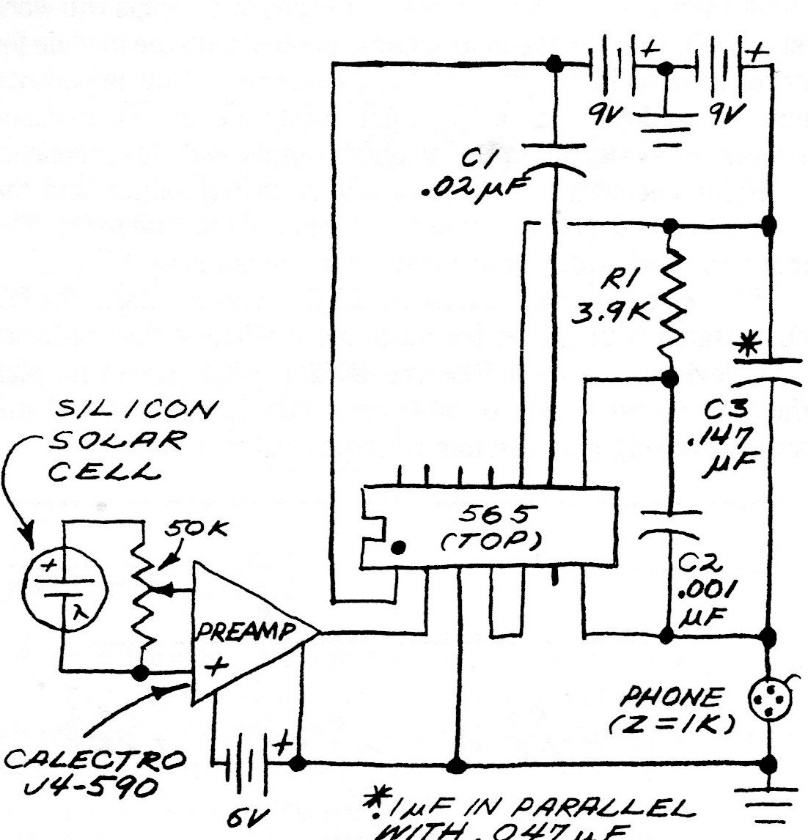

This is the receiver circuit for the PFM (pulse rate modulation) transmitter of the previous article (CB19102E). The circuit can have its range improved with the increase of the power of the transmitter and the use of optical resources in the receiver.
| Clique na imagem para ampliar |
