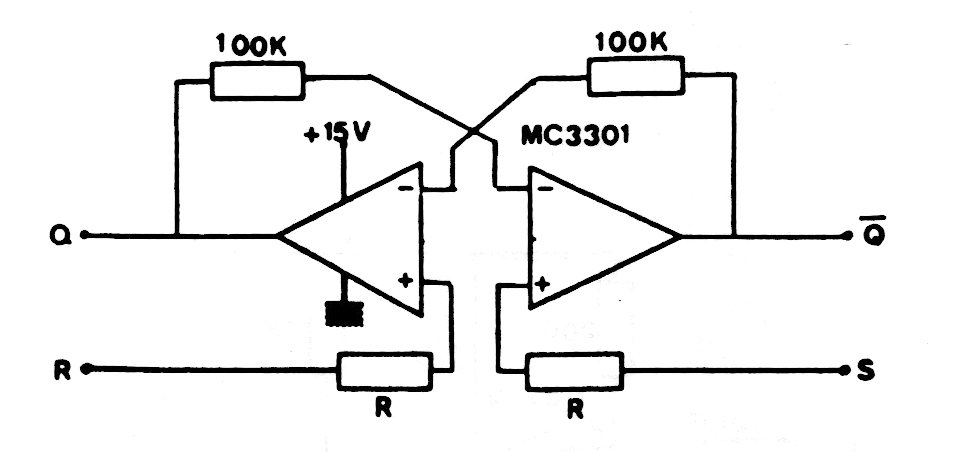

Operatives used in this 80's configuration are not common today, but it is valid for modern operational amplifiers. The resistors R depend on the application having values between 1k and 100k.
| Clique na imagem para ampliar |
Flip Flop RS with Operational (CB19399E)
