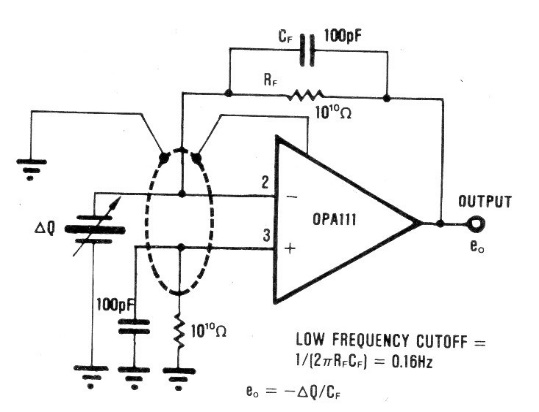

This circuit was found in an application manual from the 1980s. The operational amplifier used is not the most common currently, but equivalents can be tested. The feed must be symmetrical. Note the need for shielding the input cables.
Piezoelectric Transducer Amplifier (CB19005E)
- Details
- Written by: Newton C. Braga
