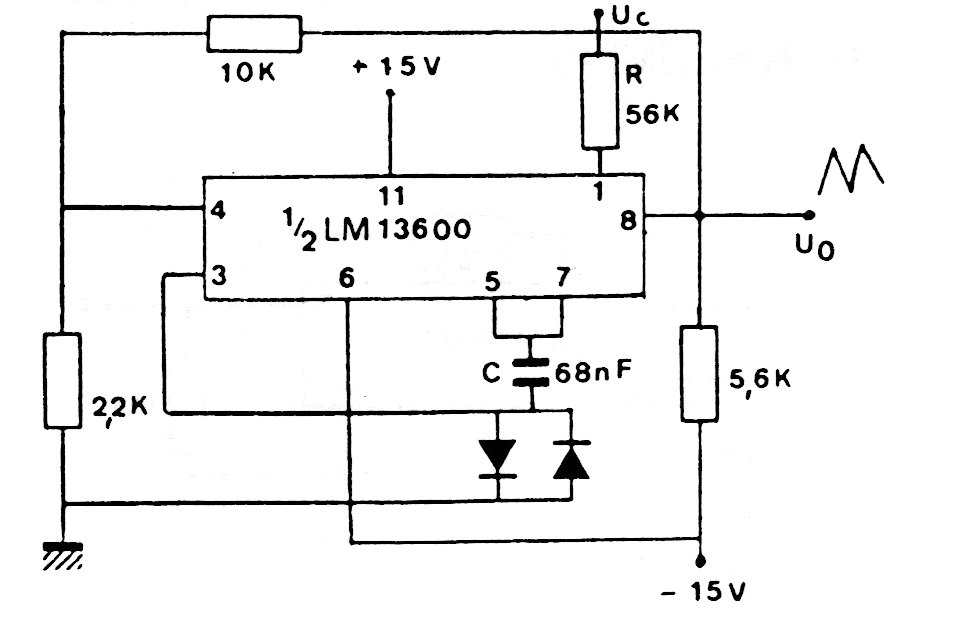

The integrated circuit used in this configuration is uncommon today. The diodes are for general use and the frequency of the signal produced, which should not exceed a few tens of kilohertz, is determined by the capacitor.
