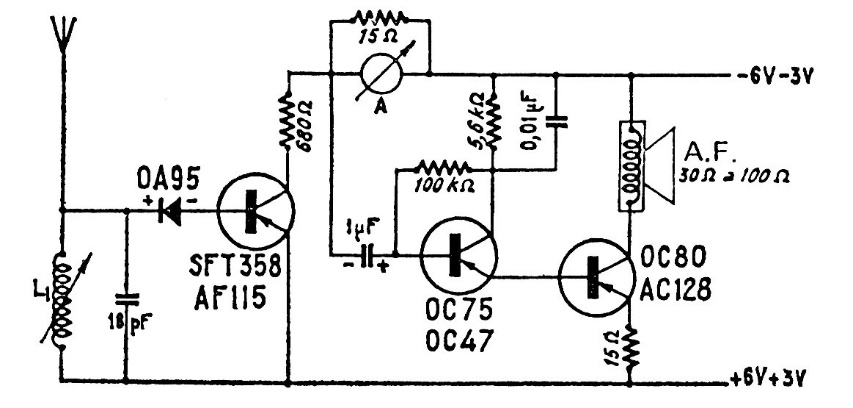

This circuit is from a documentation from the 70s. The transistors are types of germanium of the time and the coil consists of 15 turns of wire 28 in the form of 5 mm without core.
| Clique na imagem para ampliar |
Listening Monitor and 27 MHz Field Meter (CB19602E)
- Details
- Written by: Newton C. Braga
