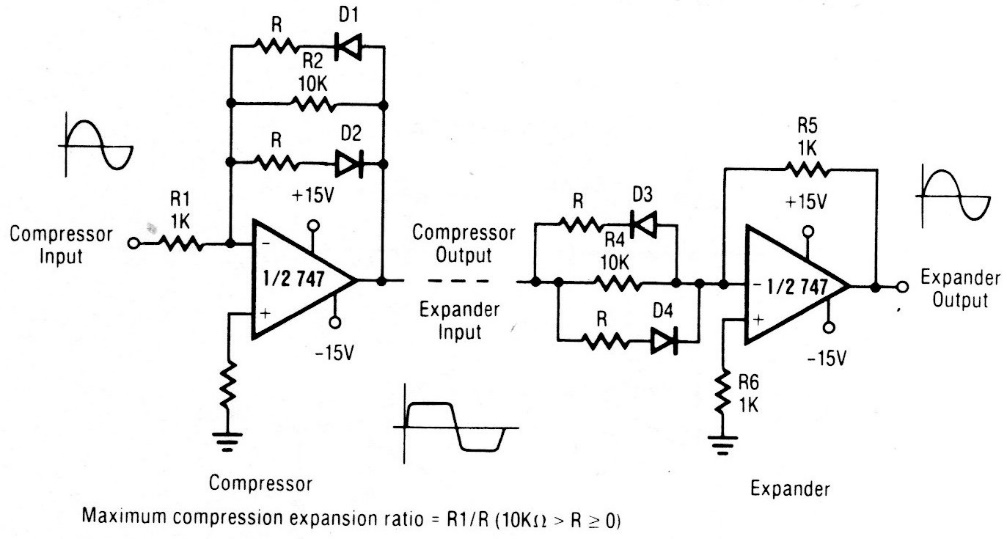

This circuit compresses signals and then expands them to facilitate the transmitter. The operational ones used are not common today, but the circuit can be adapted to use more modern types. The power source is symmetrical.
