Astable with Operational (CB19839E)

Details
Written by: Newton C. Braga

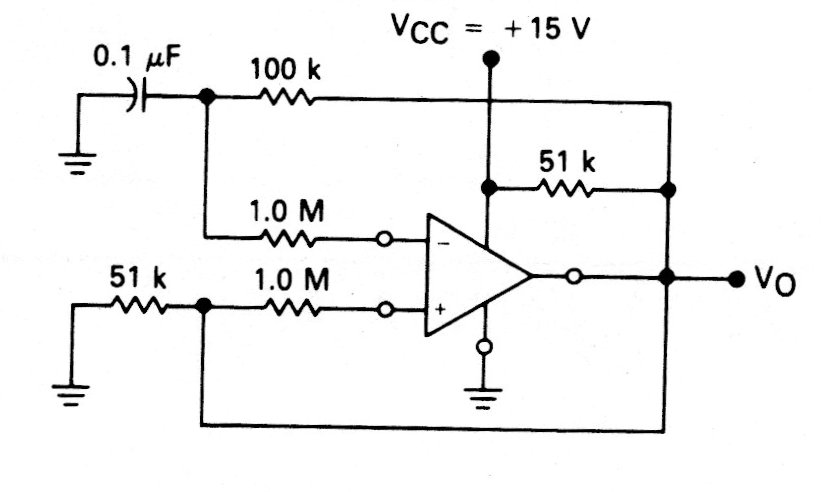

This configuration can be found in several articles on this site. The one shown in the diagram is from the datasheet of the LM101 series amplifiers, but it can be implemented with other types.




| Clique na imagem para ampliar |
