Liquid Crystal Watch (CB19860E)

Details
Written by: Newton C. Braga

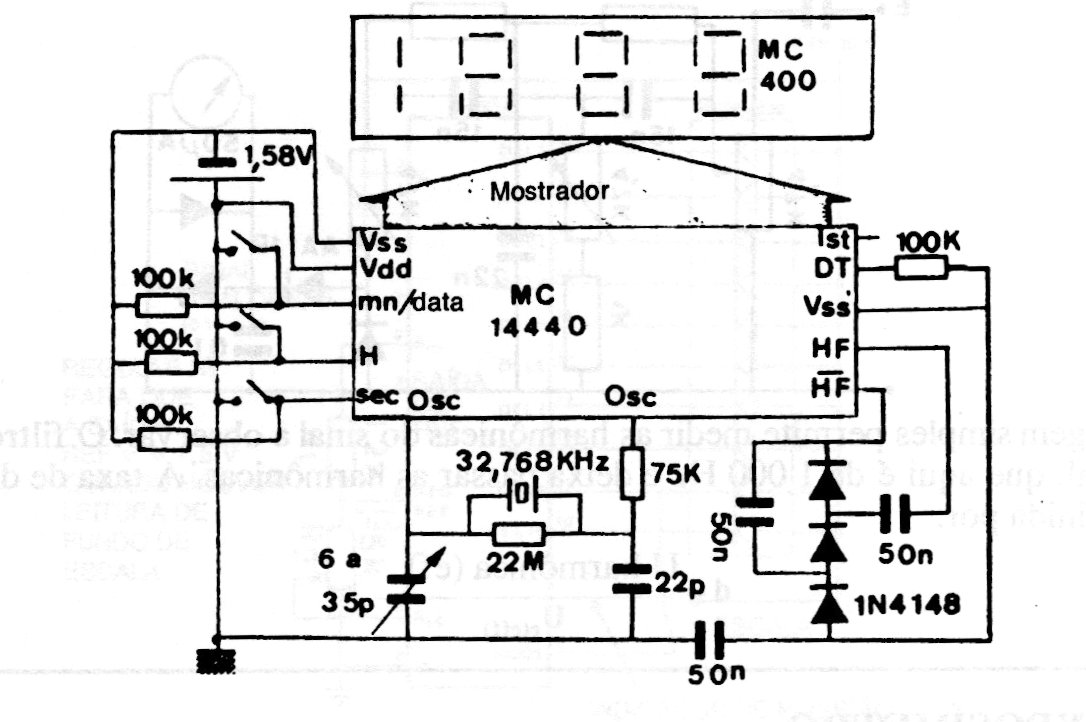

This watch uses a liquid crystal display. The circuit is from the 80s and the module used is uncommon nowadays. Power is provided by a single cell.






| Clique na imagem para ampliar |
