Flame Detector (CB19938E)

Details
Written by: Newton C. Braga

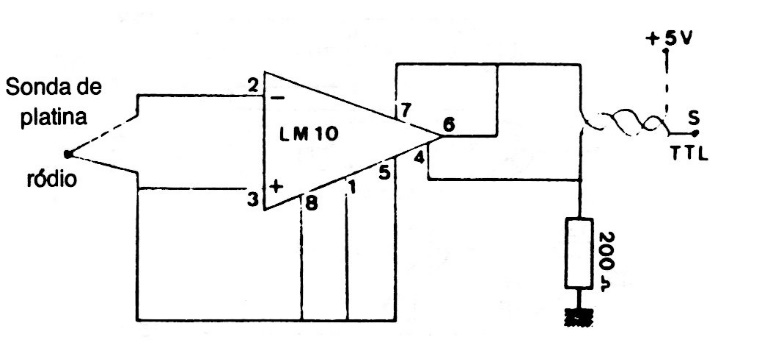

Through the TTL output this circuit can be used as a shield. The sensor is a platinum probe, and the operational amplifier can be replaced by a modern equivalent, preferably of low voltage.




| Clique na imagem para ampliar |
