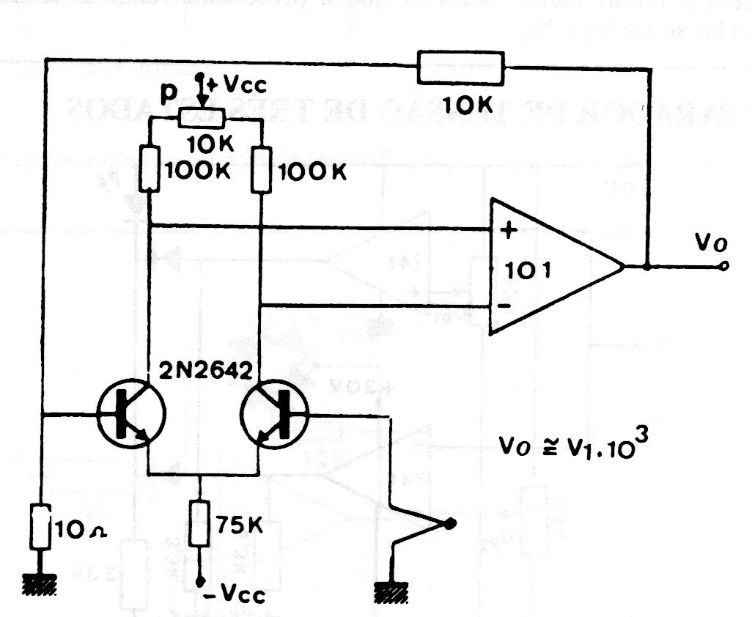

This low drift circuit for thermocouple was found in an old European documentation. However, it is valid for more modern operators. Transistors can be matched equivalents, that is, with the same gain. The power supply must be symmetrical with voltage according to the operational.
| Clique na imagem para ampliar |
