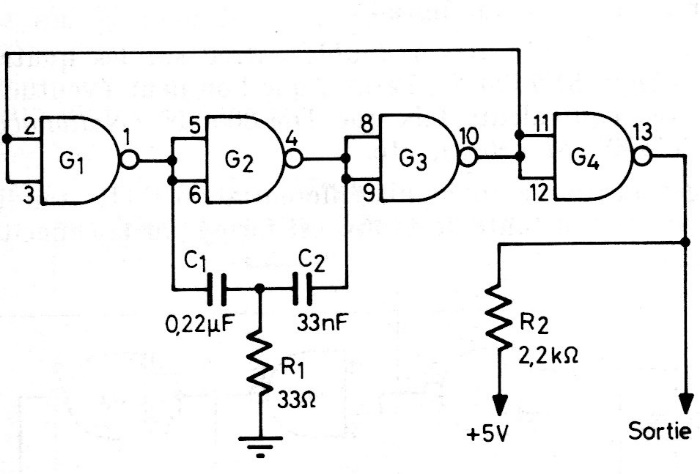

This is an interesting configuration that can be used as a shield. The circuit generates rectangular pulses and must be powered with 5 V. The frequency with the components used is 1.6 kHz but can be modified by changing the capacitors.
