JFET Touch Shield (CB19559E)

Details
Written by: Newton C. Braga

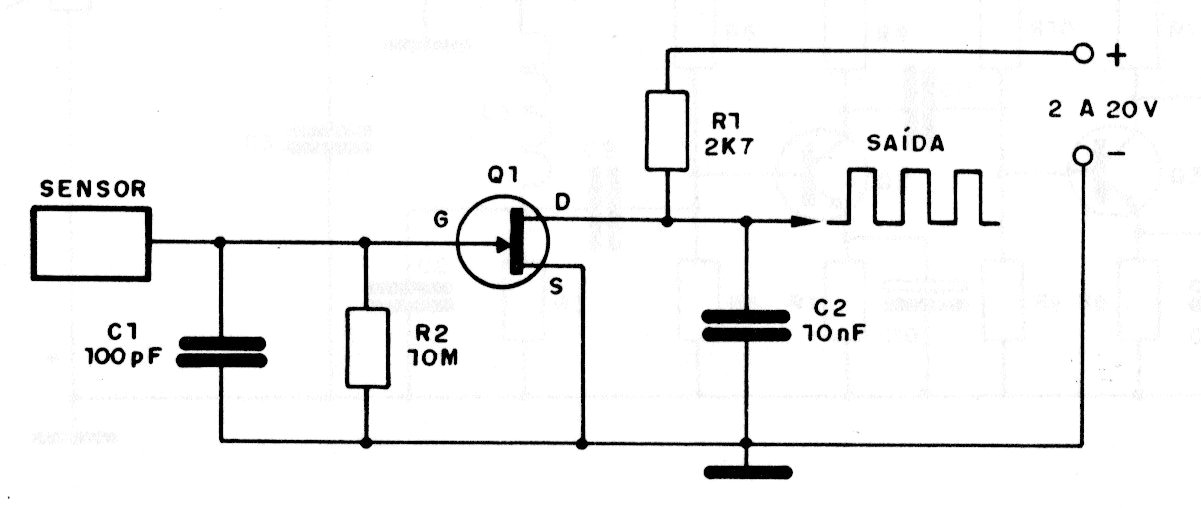

This circuit can be used as a shield for touch control. The circuit can use any common FET like the BF245 and should never be powered by a source without a transformer.




| Clique na imagem para ampliar |
