Humidity detector (CB19937E)

Details
Written by: Newton C. Braga

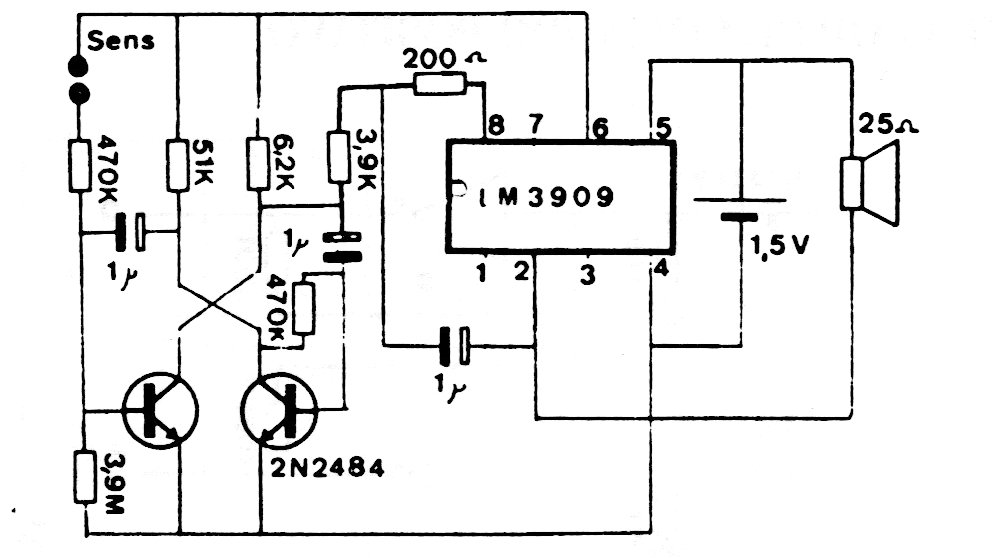

The LM3909 tone generator integrated circuit of this application is uncommon nowadays. The circuit can operate on a single battery and is very sensitive.




| Clique na imagem para ampliar |
