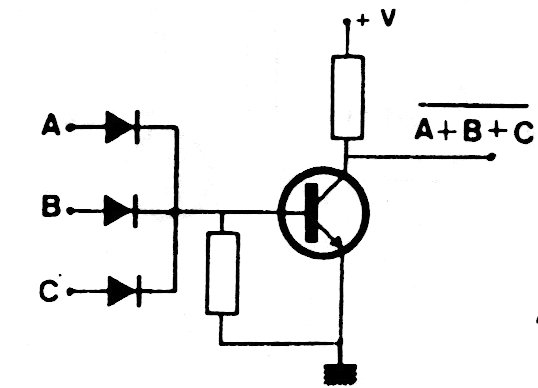

In the figure we have the simple way to implement the NO-OR or NOR function with common diodes and a general-purpose transistor. The base resistor has a typical value of 44k and the collector is 2k2.
