Microphone Preamplifier (CB19999E)

Details
Written by: Newton C. Braga

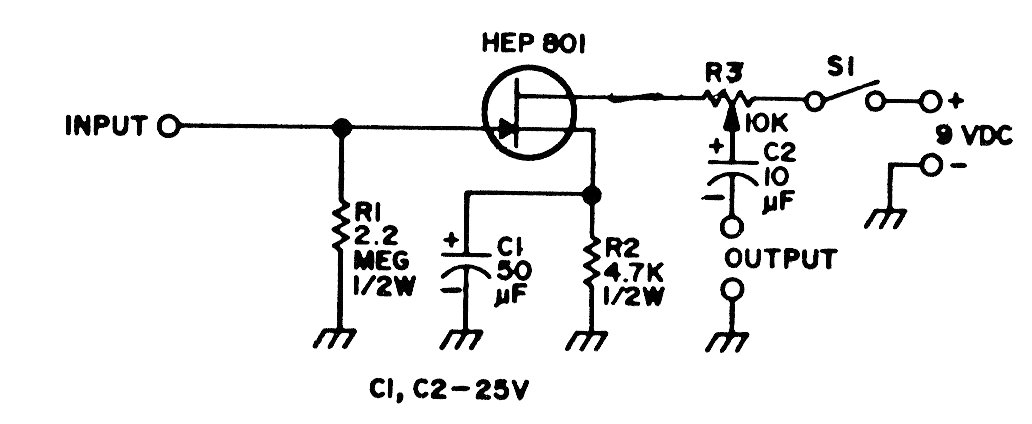

This circuit, from the 70's, can be assembled with a more modern FET like the BF245. The circuit is powered by a 9 V battery, as its consumption is very low.
