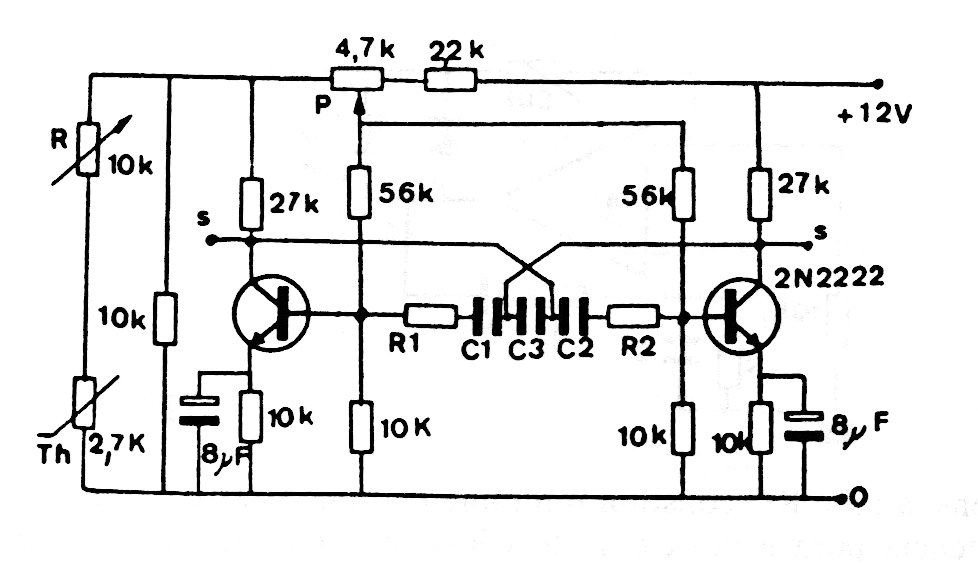

This astable was found in a European technical documentation from the 80's. The perfectly symmetrical unsaturated circuit has a generated frequency that depends on the capacitors C and the R setting. operation.
| Clique na imagem para ampliar |
Symmetric Multivibrator (CB19347E)
- Details
- Written by: Newton C. Braga
