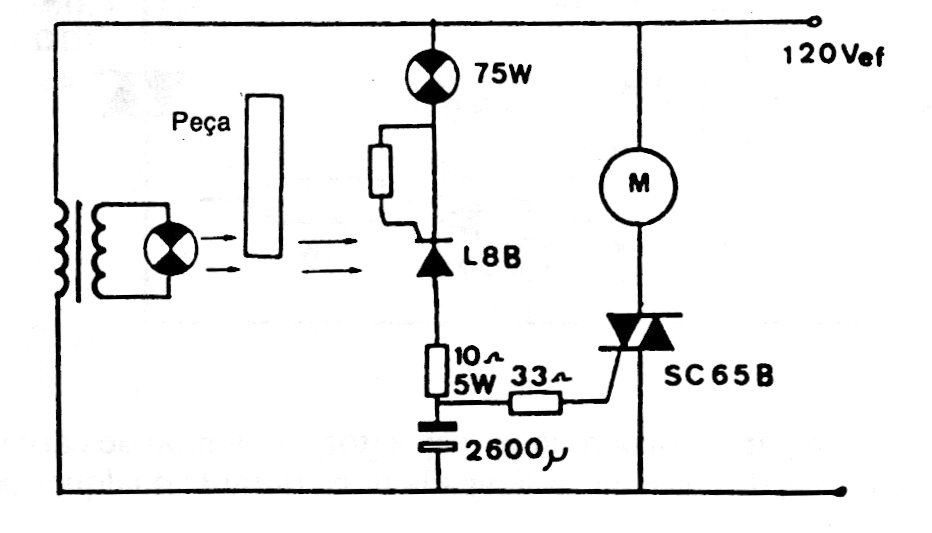

This circuit monitors the passage of objects on a conveyor, triggering an alarm when objects lock up. The sensor is a photo SCR, an uncommon component today, but the circuit can be modified to operate with a phototransistor as a sensor and an LED as an emitter.
