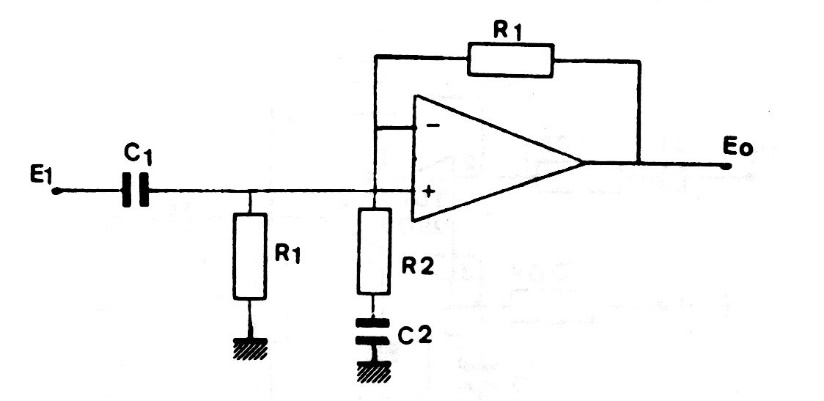

This is another setting that allows you to use operational amplifiers to amplify alternating signals. Resistors R1 and R2 determine the gain and the input impedance. The supply must be symmetrical with voltage according to the operational.
